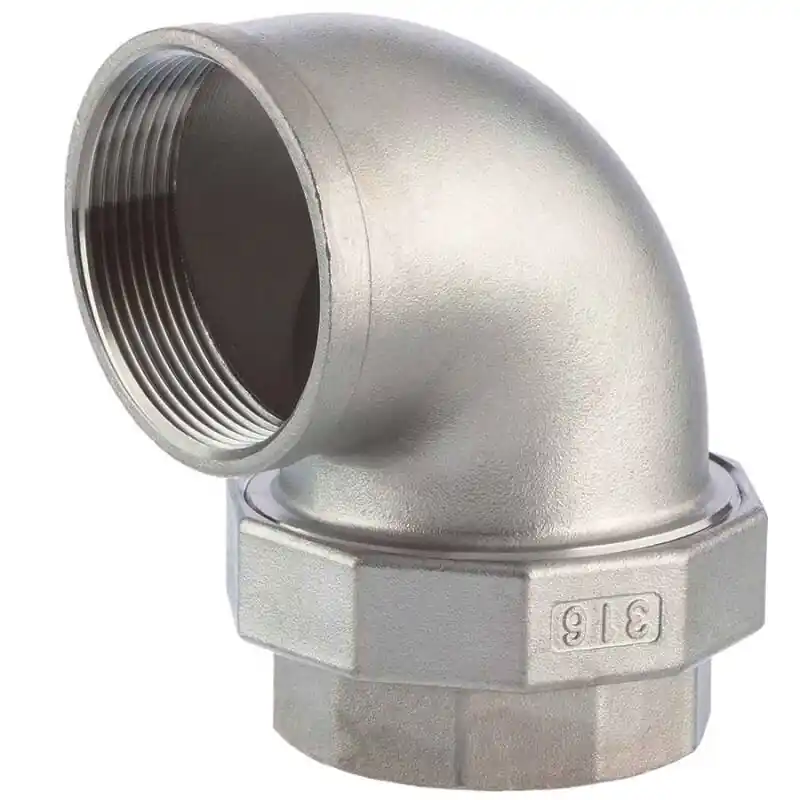

Connection: 2-way female thread

Thread: BSP pipe thread Rp (conical) DIN 2999 & BS21, ISO 228/1 & ISO 7/1, not self-sealing, sealing with hemp, sealing paste or similar.

Temperature: -20°C to 200°C

Working pressure (PN): 20 bar

Material: Stainless steel

Stainless steel AISI 316 V4A (UNE EN 10213-4 / DIN 1.4408)

Gasket: Flat gasket PTFE (Teflon)

DIN: Dimensions conform to ISO 4144, connection thread to ISO 7/1 (DIN 2999 / BS 21)

Color: Gray Stainless steel

The key data

• Working temperature -20°C to 200°C
• Working pressure PN 20 bar (300 psi)
• Dimensioning according to ISO 4144
• Whitworth thread, CNC machined according to ISO 7/1 (DIN 2999 / BS21)
• Manufacturing standard UNE EN 10213-4, tolerance DIN 1.4408

Stainless steel (according to EN 10020) is a designation for alloyed or unalloyed steels with a special degree of purity. Steels whose sulphur and phosphorus content (so-called iron companions) does not exceed 0.025%.
Alloy 316 is a standard steel grade with molybdenum. The molybdenum gives alloy 316 better corrosion resistance than 304, in particular greater resistance to pitting and crevice corrosion in chloride-containing media. The austenitic structure gives this alloy a high degree of toughness, even at very low temperatures, high creep strength, creep rupture strength and tensile strength at elevated temperatures. The alloy is colloquially known as V4A stainless steel.

Stainless steel AISI 316 | material 1.4401 (X5CrNiMo17-12-2) (V4A) Application: According to DVGW worksheet W541 (basis for the requirements for stainless steel pipes for domestic drinking water installations), the steel material 1.4401 is the most commonly used.
It can be used in a wide range of applications in the chemical, petrochemical and natural gas industries, the food industry, corrosive environments and extreme temperatures … Fluid technology, boilers, condensers, heat exchangers, reactors …
